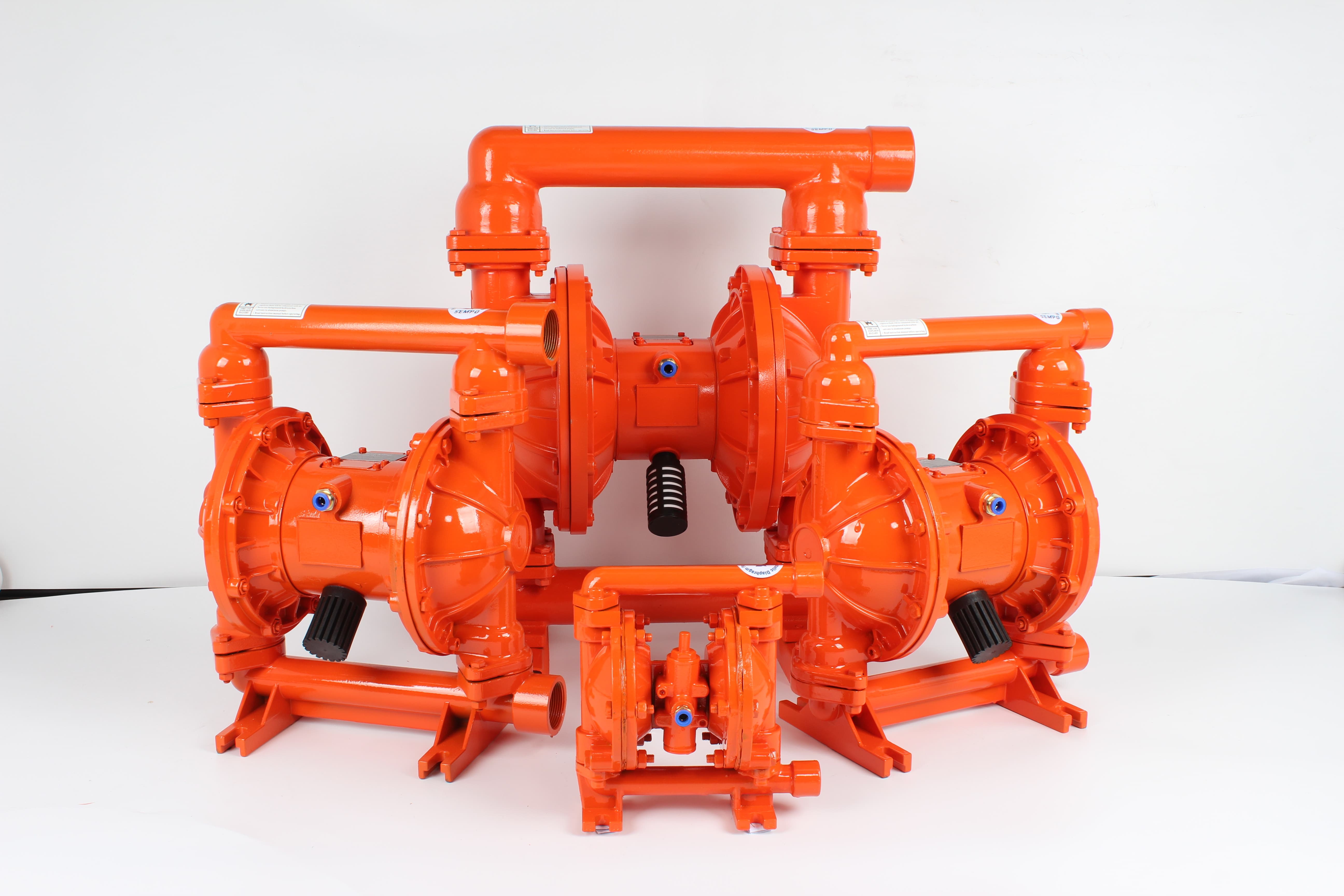

The QBK Series Air Operated Diaphragm Pumps are renowned for their efficiency, versatility, and durability in a wide variety of industrial applications. Known for their superior performance, these CE certified pumps are used in everything from chemicals to water treatment plants. Despite their ruggedness, properly maintaining these pumps is key to maximizing their lifespan and ensuring continued trouble-free operation. This article outlines the best maintenance plan for QBK Air Operated Diaphragm Pumps.
The Importance of Regular Maintenance

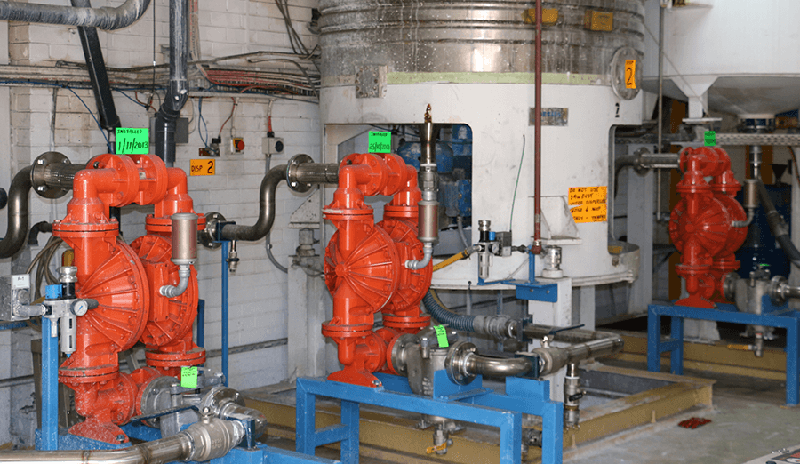

Before we dive into the details, it’s important to understand why regular maintenance is so important. Air-operated diaphragm pumps like the QBK Series operate in demanding conditions. They handle abrasive chemicals, viscous liquids, and slurries, and often run continuously for long periods of time. Without regular maintenance, these pumps can wear out, leading to inefficiency and potential failure. Regular care not only prevents costly repairs, it also ensures that the pump operates at peak efficiency.
Daily Maintenance
1. Visual Inspection:
Every day, start with a quick visual inspection. Check the outside of the pump and its connections for any obvious signs of wear, leaks or damage. Check the air supply line for moisture or blockages, as these can affect pump performance.
2. Listen for unusual sounds:
Operate the pump and listen for any unusual sounds, such as knocking or whining, which may indicate an internal problem.
Weekly Maintenance
1. Check Air Filter and Lubricator:
Make sure the air filter and lubricator unit is clean and properly filled. The air filter should be free of contaminants and the lubricator should be filled to the specified level to provide adequate lubrication to the diaphragm.
2. Inspect Diaphragms and Seals:
While visual inspection of the internal diaphragms and seals requires disassembly, weekly inspections are recommended for any obvious signs of wear or degradation. Catching wear early can prevent more serious problems.
Monthly Maintenance
1. Tighten Bolts and Connections:
Over time, vibrations from normal operation may cause bolts and connections to loosen. Check and tighten all bolts and fasteners to ensure the integrity of the pump.
2. Check pump base and mounting:
The pump mounting and base should be secure and free from excessive vibration. Ensure mounting bolts are tight and there is no excessive pressure on the pump casing.
3. Check for Leaks:
Any internal or external leaks should be thoroughly checked. Leaks may indicate worn seals or diaphragms that need to be replaced.
Quarterly Maintenance
1. Full Internal Inspection:
A more detailed internal inspection is performed every three months. This includes checking the diaphragm, seats and check valves for wear. Any worn parts are replaced to prevent failure and maintain efficiency.
2. Replace Exhaust Muffler:
The exhaust muffler should be inspected and replaced if it shows signs of clogging or wear. A clogged muffler will reduce pump efficiency and increase air consumption.
3. Clean and Lubricate the Air Motor:
To maintain smooth operation, clean and lubricate the air motor. This will help reduce friction and wear, extending the life of the motor.
Annual Maintenance
1. Overhaul the Pump:
Perform a complete overhaul of your pump once a year. This includes disassembling the pump, cleaning all parts, and replacing all diaphragms, seals, and O-rings. Even if these parts do not appear to be worn, replacing them will ensure continued optimal performance.
2. Check the air supply:
Make sure the entire air supply system is operating properly with no leaks, blockages or other problems. Replace any worn or damaged hoses and fittings.
3. Evaluate Pump Performance:
Evaluate the overall performance of the pump by measuring flow and pressure output. Compare these metrics to the pump’s specifications to ensure it is operating efficiently. Significant deviations may indicate underlying issues that need to be addressed.
General Best Practices
In addition to regular maintenance tasks, following these best practices can further extend the life of your QBK air-operated diaphragm pump:
- Proper Training:
Ensure all operators are properly trained on the use and maintenance of the pump.
- Maintain a Proper Air Supply:
Always make sure the pump is receiving clean, dry, and adequately conditioned air. Moisture and contaminants in the air supply can cause premature wear.
- Use genuine parts:
When replacing components, use genuine QBK parts to ensure compatibility and maintain the integrity of your pump.
- Maintain a Clean Work Environment:
Keep the pump and surrounding area clean to prevent contamination and buildup on the pump.
in conclusion
Regular maintenance of your QBK Series Air-Operated Diaphragm Pump is essential for reliable, efficient operation. Following these guidelines will help you identify and resolve potential problems before they escalate, ensuring your pump remains in good working condition for years to come. By investing time in routine maintenance, you can avoid unexpected downtime and costly repairs, ultimately saving you time and money.
