Thaihang Anti Splashing Tape TH-AS100 Spray-Stop Tape Antispray Tape CCS ABS DNV

Thaihang Anti Splashing Tape TH-AS100 Spray-Stop Tape Antispray Tape CCS ABS DNV

Short Description:

Thaihang Anti Splashing Tape for ship’s engine room

Brand : Thaihang

Model : TH-AS100

Certificate:CCS /ABS/CLASS NK/DNV/RINA/KR/LR

Technical Data

Thickness of tape : 0.355mm

Length of tape : 10mtrs

Width of tape : 35/50/75/100/140/200/250/500/1000mm

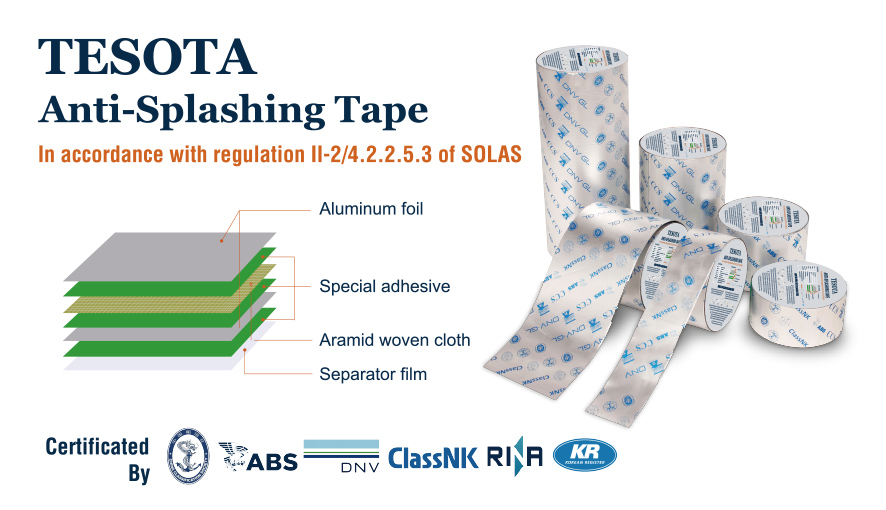

Material of tape : Multi-layer of aluminium foils,aramid woven cloth,separtator film and special adhesive

Max Pressure : 1.8Mpa

Max Temperature : 160℃


  • :
  • Product Detail

    Thaihang TH-AS100 Anti-splashing Tape General Description

    Anti-splashing Tape is a fire protection system especially designed for the marine use age or on land with a high-tech,mainly to prevent hot oil or other hot fiuids leak from the piping in the splash which can come into contact with the hot surface or circuit,may cause fire ,explosion and other extremely dangerous disaster.

    According to SOLAS regulation FRASǁ-2/15.5.11,ǁ-2/15.3ǁ-2/15.4,require oil fuel, lubricating oil and other flammable oil piping, respectively , to be screened or other wise suitably protected to avoid as far as oil splashing or drip, the pipeline protection system should be consist with IMOA653 (6) requirements.



    Thaihang TH-AS100 Anti-splashing Tape Technical specification

    The Thaihang TH-AS100 Anti-splashing Tape is produced from materials of the highest quality, selected in such way as to ensure the best protection against high pressure, high temperature while maintaining the elasticity necessary for a quick and easy installation.

    Thaihang TH-AS100 Anti-splashing Tape

    Physical properties and performed test

    Brand : Thaihang

    Model : TH-AS100

    Color: silver

    Thickness: 0.355MM

    Temperature range: up to 160℃

    Pressure range : up to 1.8Mpa

    Certificate:CCS /ABS/DNV/CLASS NK / RINA /KR/LR

    Shelflife: indefinite shelf life when properly stored



    Thaihang TH-AS100 Anti-splashing Tape Application

    We service pipes,pumps,strainer and purifier,heater and cooler,tray and other device fuel tube oil, hydraulic oil and other fiammable oil, oil-fired boiler, thermal,heater,inert gas generator,The above flamable part need special protection from potential exposure to fire sources: Boiler,heater,incinerator,exhaust gas pipe, steam,pipe,steam pipe,turbochafrom potentialrger,electronic veldinn snatter,cinarette and etc.

    TH-AS100-ANTI-SPLASHING-TAPE
     CODE DESCRIPTION UNIT
     871801 TAPE ANTI-SPLASHING 35MMX10MTR, CCS ABS CLASS NK DNV RINA KR LR RLS
     871802 TAPE ANTI-SPLASHING 35MMX10MTR, CCS ABS CLASS NK DNV RINA KR LR RLS
     871803 TAPE ANTI-SPLASHING 35MMX10MTR, CCS ABS CLASS NK DNV RINA KR LR RLS
     871804 TAPE ANTI-SPLASHING 35MMX10MTR, CCS ABS CLASS NK DNV RINA KR LR RLS
     871805 TAPE ANTI-SPLASHING 35MMX10MTR, CCS ABS CLASS NK DNV RINA KR LR RLS
     871806 TAPE ANTI-SPLASHING 35MMX10MTR, CCS ABS CLASS NK DNV RINA KR LR RLS
     871807 TAPE ANTI-SPLASHING 35MMX10MTR, CCS ABS CLASS NK DNV RINA KR LR RLS
     871808 TAPE ANTI-SPLASHING 35MMX10MTR, CCS ABS CLASS NK DNV RINA KR LR RLS
